Regular price$1,250.00

Clearance for V-Cam
  • In stock, ready to ship
  • Backordered, shipping soon
These might be the nicest pistons we have gotten our hands on. We are really impressed by the quality of the build.

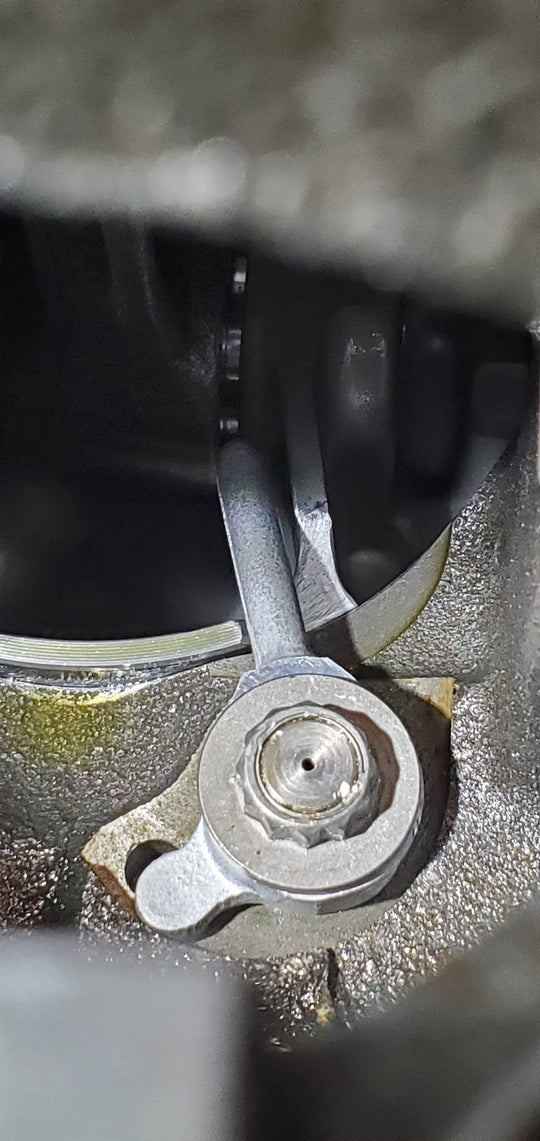

These pistons require notching the piston and moving the oil squirter to the side for clearance.

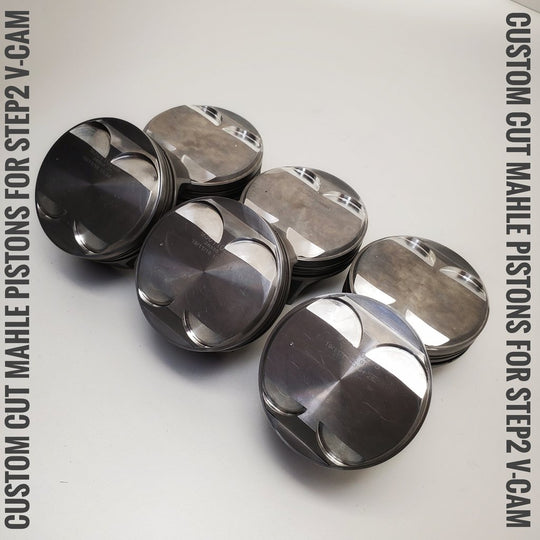

We can also have these pistons cut to clear HKS Step2 V-Cam.
The Mahle PowerPak Plus is a complete, race proven piston assembly kit.

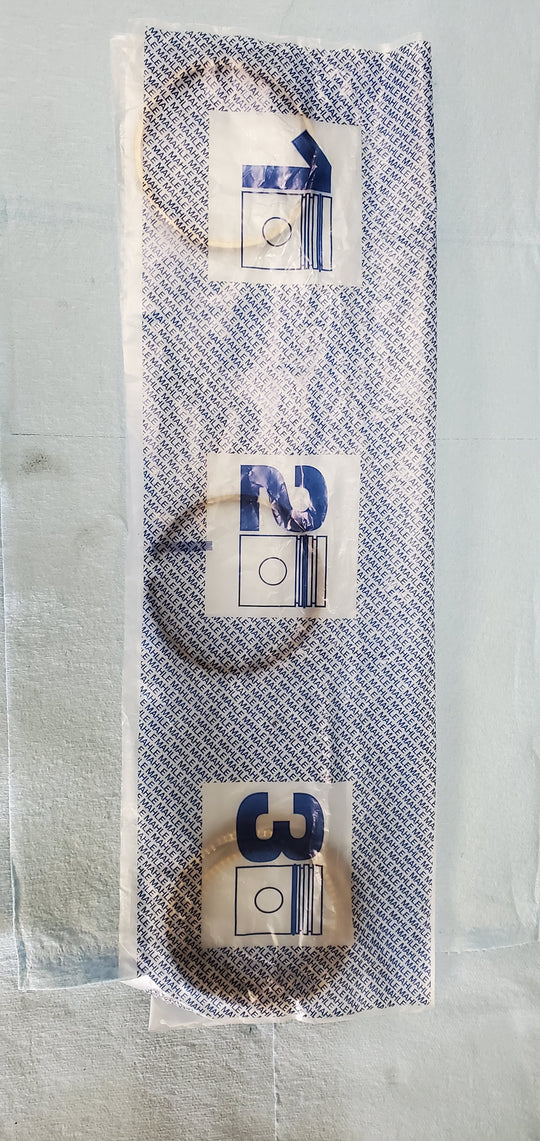

It is composed of hand deburred, forged, performance coated pistons, high quality steel pins, round wire locks and low drag performance file fit rings.

Performance coatings include a phosphate dry lubricant that is used to protect against ring micro-welding and pin galling during initial startup and break in. For added performance, MAHLE applies its proprietary Grafel anti-friction coating to each piston skirt.


More Information
Note Must check oil squirter clearance, possible modification needed. PowerPak Plus 2618 Alloy & Hard Anodized Top Ring Groove For Extreme Duty Applications
Item Weight 366 g
Shipping Weight (Dimensional) 6.1700
Part Type Pistons
Make Nissan / Infiniti
Vehicle Model Skyline GT-R R32 R33 R34
Vehicle Group Skyline GT-R 89-94 R32, Skyline GT-R 95-98 R33, Skyline GT-R 99-02 R34
Engine RB26DETT
Compression Ratio 8.5:1
Bore Diameter 86.5mm
Pin Size 0.827" / 21mm
Head cc 65 cc
Dome cc 16 cc
Compression Height 1.190" / 30.25mm
Piston Coating Skirt Coating
Manufacturer Mahle
Stroke 73.7mm
Skirt Type Slipper Skirt
Rod Length 4.783" / 121.5mm
Piston Material 2618
Compression Ratio Range 8.0:1 - 9.0:1
Bore Oversize 0.020" / 0.5mm
Engine Head RB26DETT
Rod Length Oversize Standard Length
Carb Legal Unspecified
Stroke Oversize Standard
Product Flags N/A
