Name: - Bracket System only - for U.P.G. RB upgraded alternator
Brand: U.P.garage
Price: 349.0 USD
Availability: InStock

- Bracket System only - for U.P.G. RB upgraded alternator

$349.00

What water pump pulley are you running? (for belt size)

OEM RB26

OEM RB20/25

HKS/ATI

What alternator alternator control are you going to run? (For wiring pinout)

STD

PWM

Quantity

In stock, ready to ship
Backordered, shipping soon

We have designed an alternator kit in house. We have thrown out the standard ways of mounting and tensioning. We have done exhaustive testing and we feel we have come up with the next big thing in alternator upgrades for the RB engine.

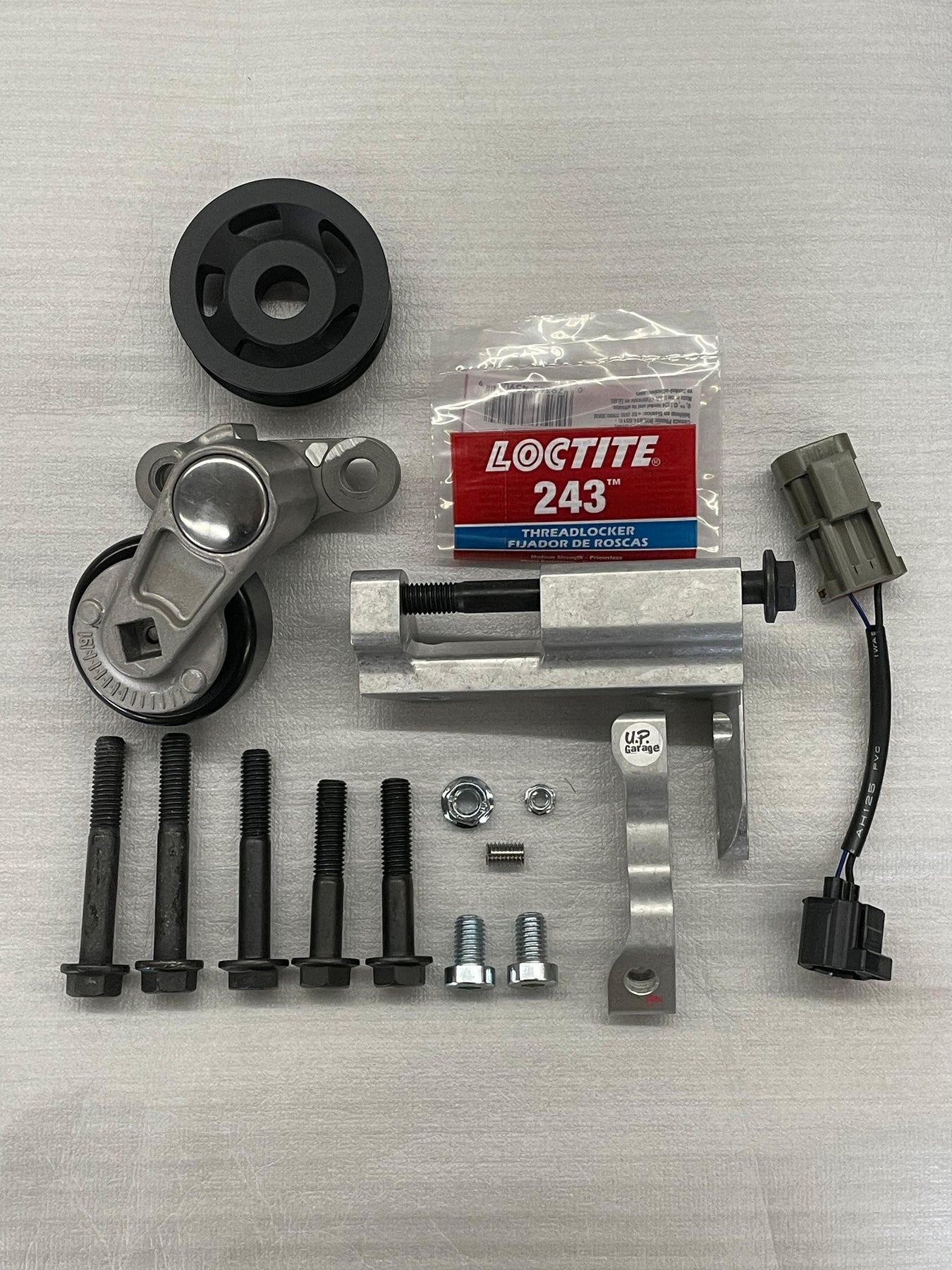

Our alternator "bracket system only" will come with the following.

Brackets (upper and lower)
Mounting hardware
Tensioner
Pulley
Jumper harness

These units have been tested to fit our bracket system.

110amp STD control OE Ford #1L8Z-10346-CARM
135amp PWM control OE Ford #XF2Z-10346-BARM
195amp PWM control ACDELCO 3343114

*****COLOR CODING FOR THE HARDWARE******

RED x1 upper alternator to upper bracket
YELLOW x2 upper bracket to water pump
BLUE X2 lower alternator to lower bracket

******Check picture for belt size recommendations******
