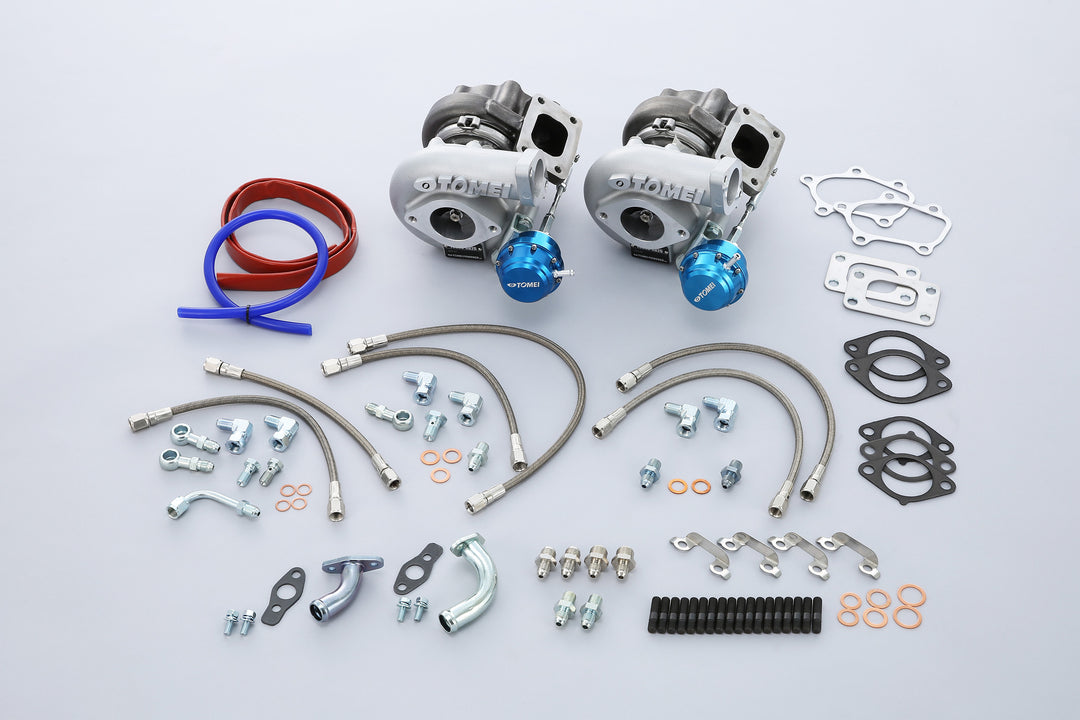

TOMEI T550B RB26DETT TURBO KIT

(Here is how we feel about these new turbos from Tomei. Short answer is that they work! The previous generation of turbo from Tomei left a bad taste in the mouths of GTR owners.  Tomei went back the drawing board and came up with something magical. The new Tomei turbos feature an IHI supercore and you can feel the difference between shifts. There is zero transient lag between shifting that we feel with the bushing turbos of the same size.  We feel this turbo really shines when its paired with a 2.8 and a Step 2 HKS V-Cam.  With this setup we get a super wide power band.  When a customer wants a 500HP build these are the turbos we install.)

Drop in ball bearing turbo kit for RB26DETT!

Trusted and proven IHI ball bearing center unit with all new compressor / turbine wheel blades and housing that have been redesigned from scratch to surpass the old journal bearing design at all stage.
Smooth spool from the low range straight up to the high RPM that makes the most of the legendary RB26DETT motor.

FEATURE / SPEC

The high precision ball bearing center housing rotating assembly made by IHI lowers the friction at pre-spool and dramatically improves the response. This also contributes for its superior durability.

Bolt-on application		Reinforced actuator
Easy bolt-on installation, no modifications required. The short parts required for the installation, such as hose, gaskets and studs come with the kit.		Remarkable stability under high boost.

The T550B Turbo Kit comes with a 1 year limited warranty after purchase.

■ HOW TO REGISTER

COMPRESSOR WHEEL DATA

	TRIM	INNER DIA.	OUTER DIA.	BLADES
BNR34 STD	–	APPROX 39.6	APPROX 56.1	6/6
BCNR33 N1	–	APPROX 60.1	APPROX 60.1	6/6
T550B	60	46.5	60.0	6/6

TURBINE WHEEL DATA

	TRIM	INNER DIA.	OUTER DIA.	BLADES
BNR34 STD	–	APPROX 50.5	APPROX 42.0	9
BCNR33 N1	–	APPROX 50.6	APPROX 41.8	11
T550B	82.0	53.0	48.0	11

Great low-mid characteristicImproved low-mid RPM range for a much better driving experience on the street.Designed to reduce surging and make the power curve as linear with engine RPM as possible for a easy, smooth and stress-free driving.

Total set up to enjoy the true performance of RB26Application specific drop-in design that is perfect choice to step-up from the stock turbo.
T550B is never a huge, peaky competition-only turbo, its design concept is to “enjoy” the RB26 motor.Total set up such as exhaust system makes the combination of the RB26 and T550B turbo even more enjoyable.
