U.P.G. R32 GTR AC fan upgrade W/Spal fan

We have designed and developed a fan replacement for the AC fan for the R32.

We are coming into a time where the R32 Skyline is going to need more and more parts and lots of items are no longer available.  With our new AC fan upgrade we have one more replacement option available.  The Spal unit we are using flows more air then the orginal unit as well which is a huge plus.

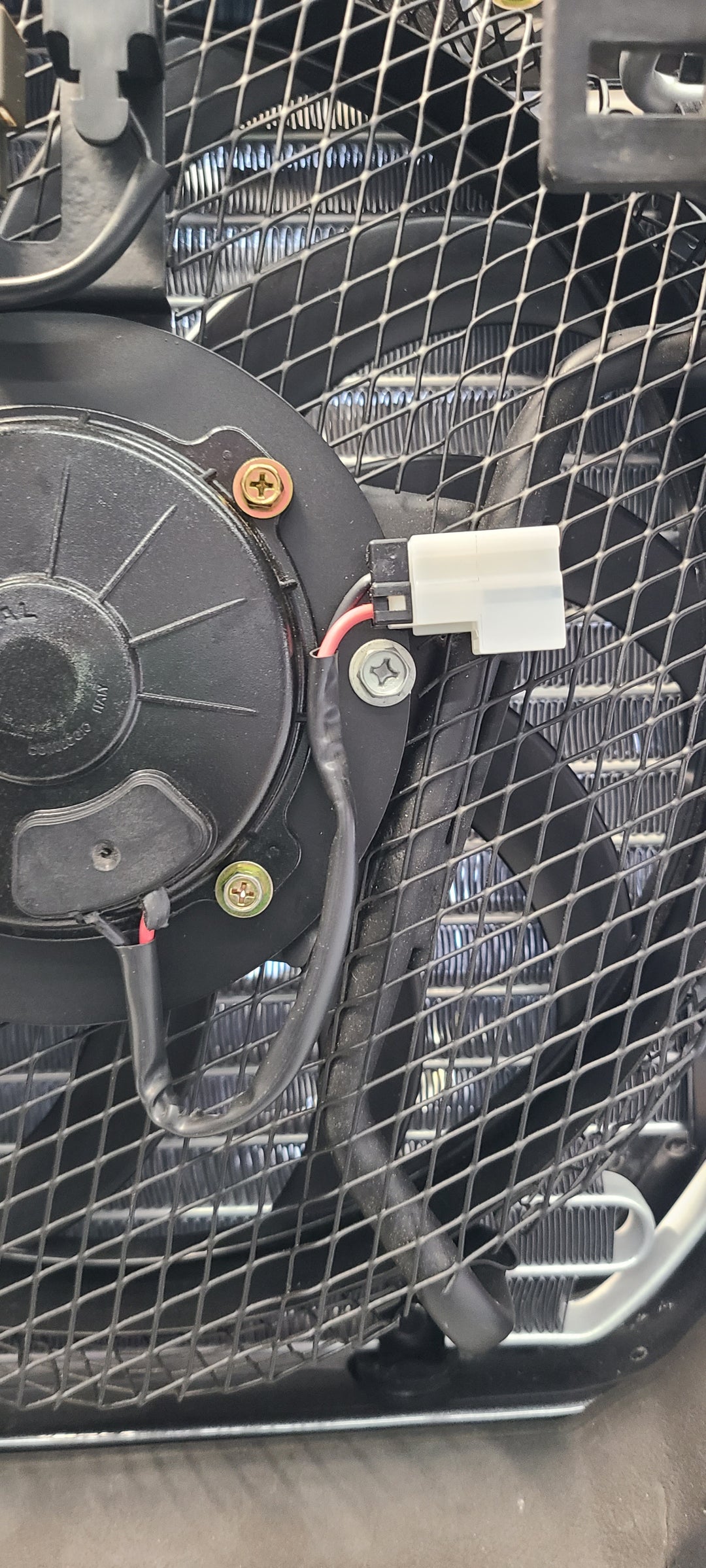

We are utilizing a 12" S-Blade Spal pusher fan.  We have made adapters to make it so that the Spal fan bolts into the OEM fan housing.  The wiring for the fan is plug in so there is not need to mess with any wiring.

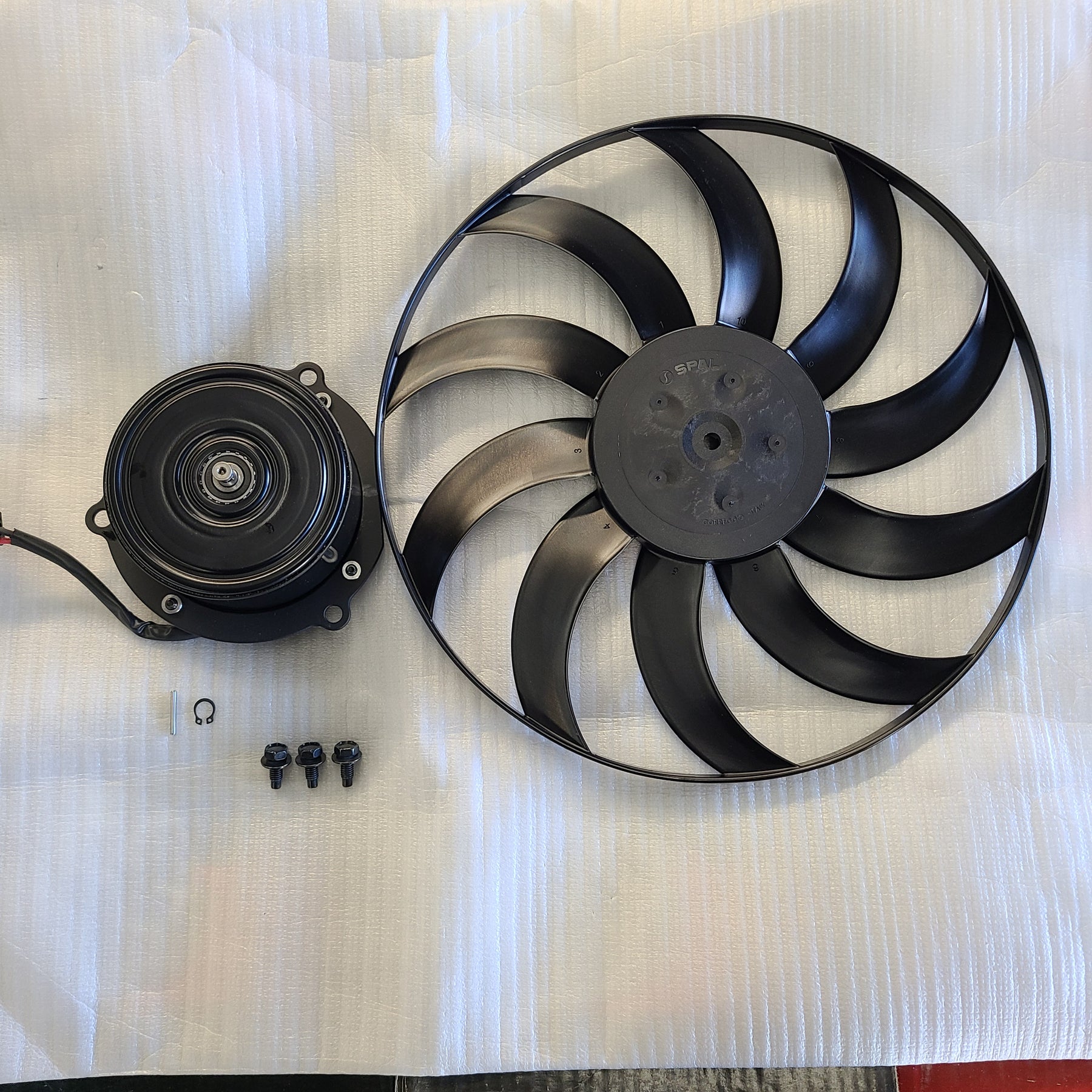

The kit includes

• Spal 12" pusher fan
• U.P.G. adapter with fan motor already installed

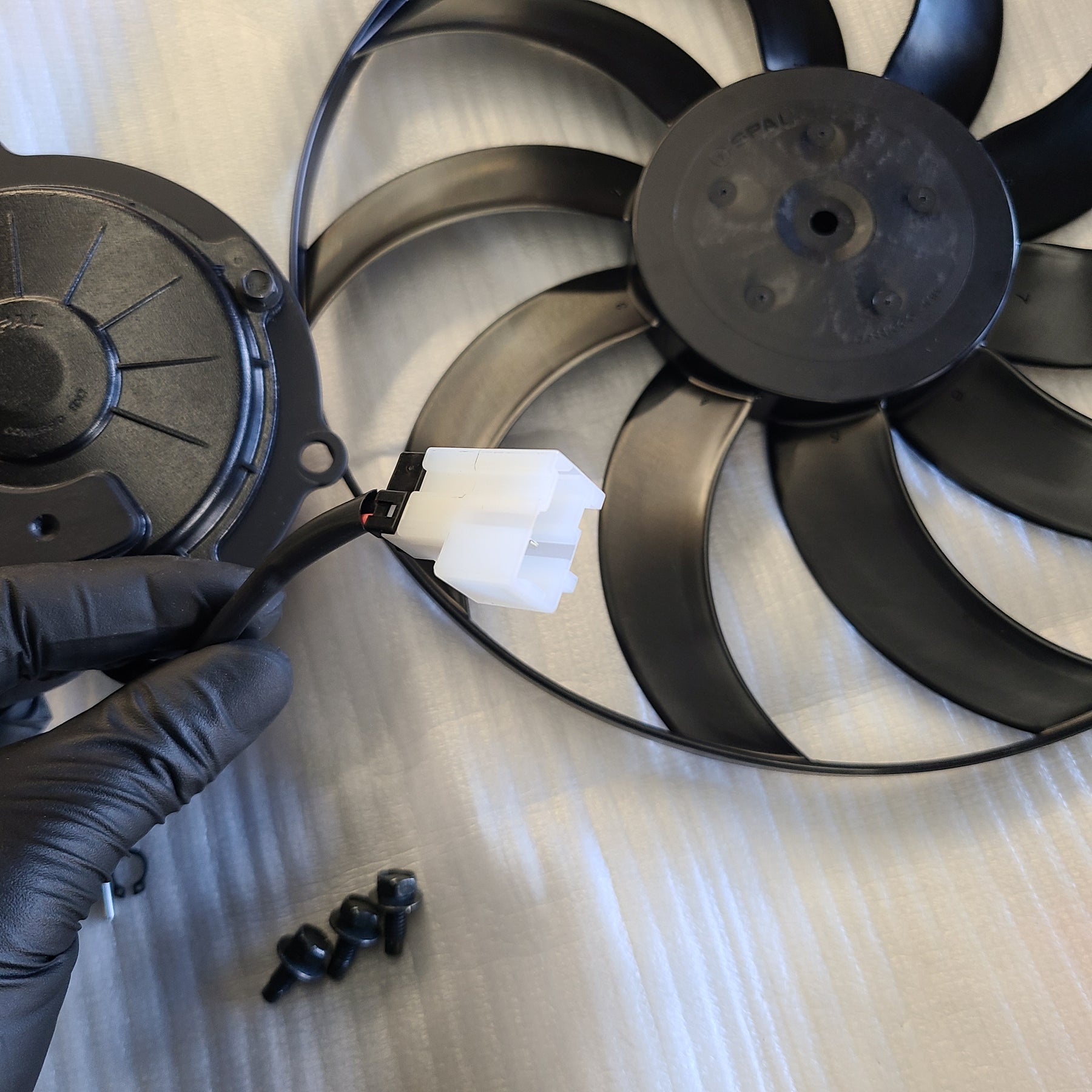

• Fan motor is pre-wired for the OEM plug
• X3 mounting bolts

Fan CFM Range: 1,200-1,299CFM

Amp Draw: 14.20 amps

******To install you will need to remove the intercooler. Once the intercooler is removed you can remove the AC fan shroud. The OEM fan comes out the back, there are 3 Phillips head bolts that can be removed with removing the oem fan blade.

To install remove the Spal fan assembly from the box and pull off the fan blade, be careful to not loose the retaining clip and the pin.  Install our fan motor with mounted adapter from the front side of the fan shroud using the supplied OEM bolts.  Flip the fan shroud over and install the pin and the fan blade, secure with the clip.*******

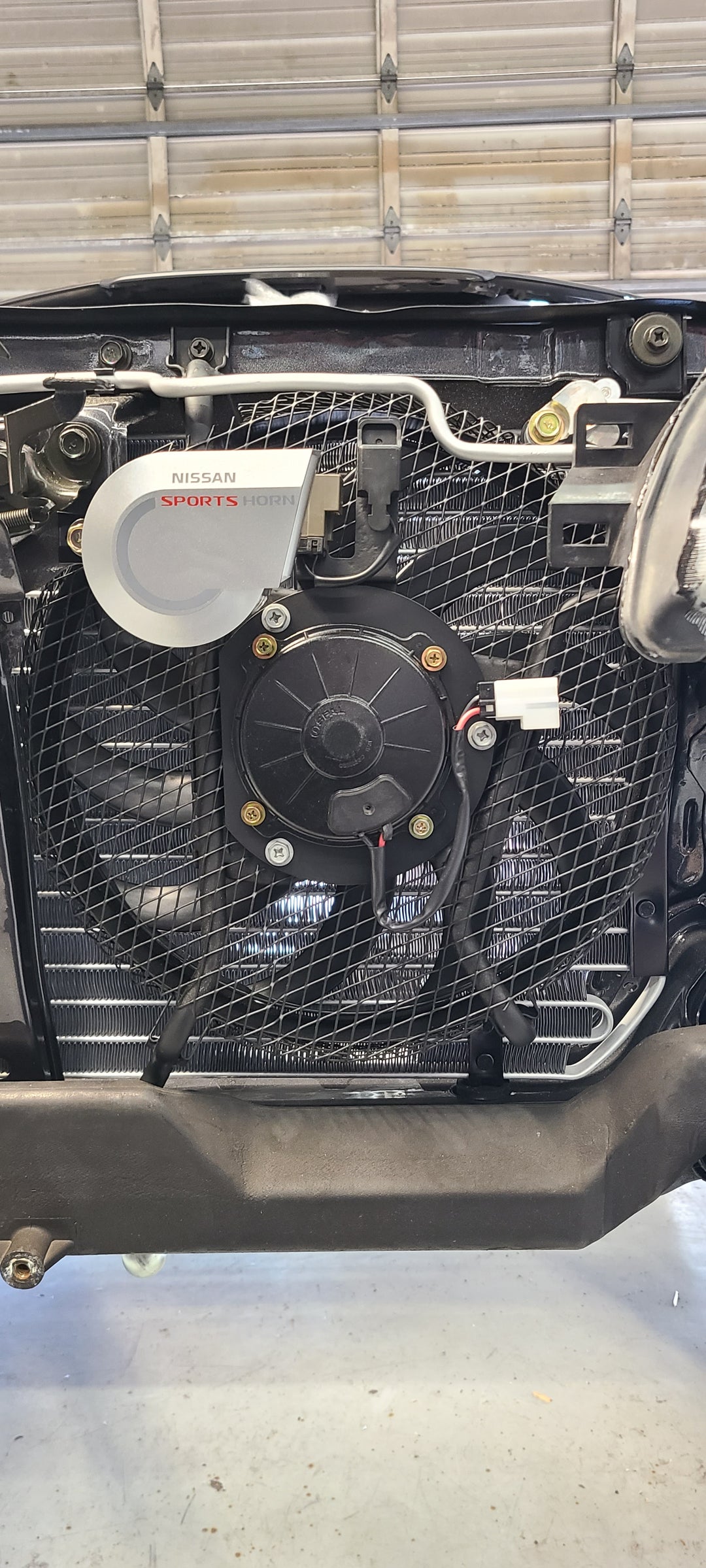

*****We have confirmed fitment with OEM, 70mm ARC, 75mm Nismo intercoolers,  it is unknown if the 100mm units might touch the bottom of the fan motor.********
